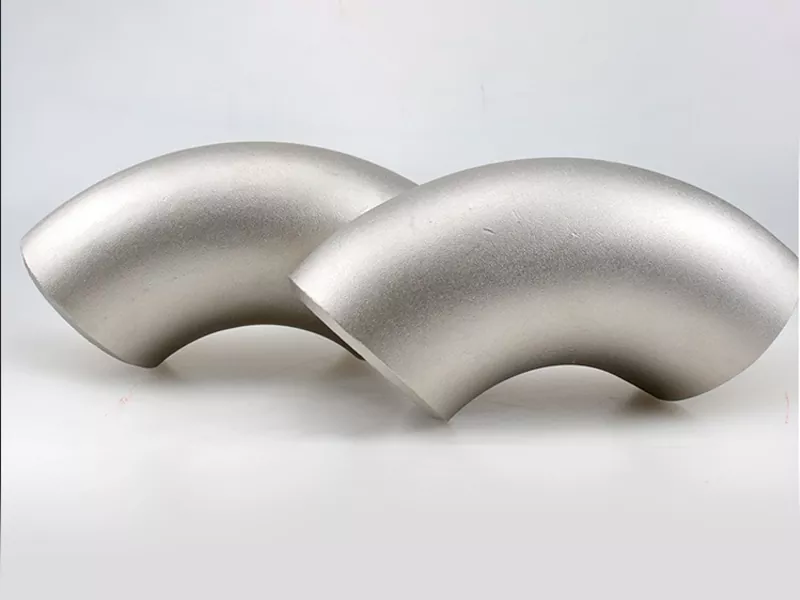

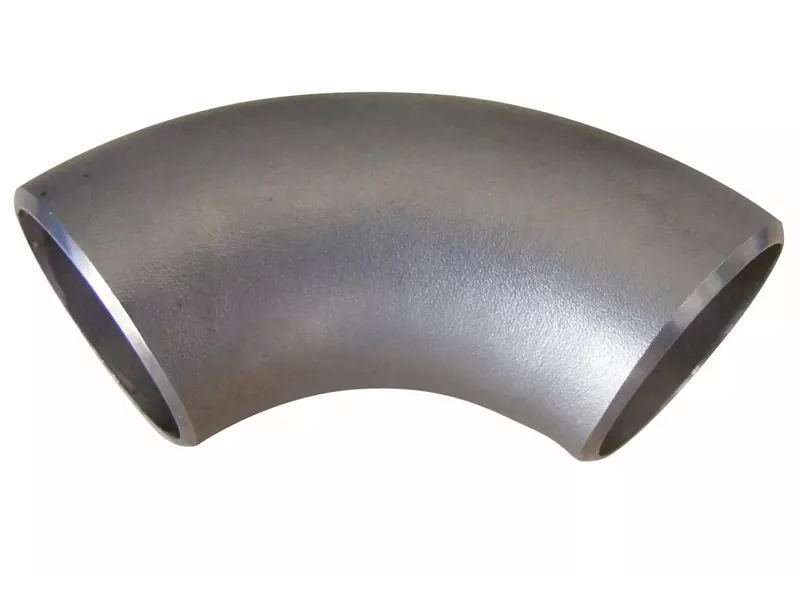

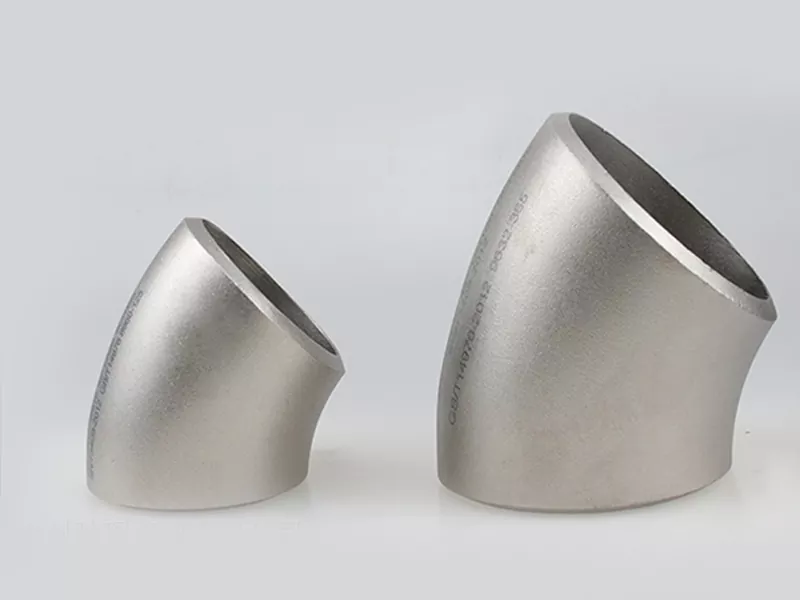

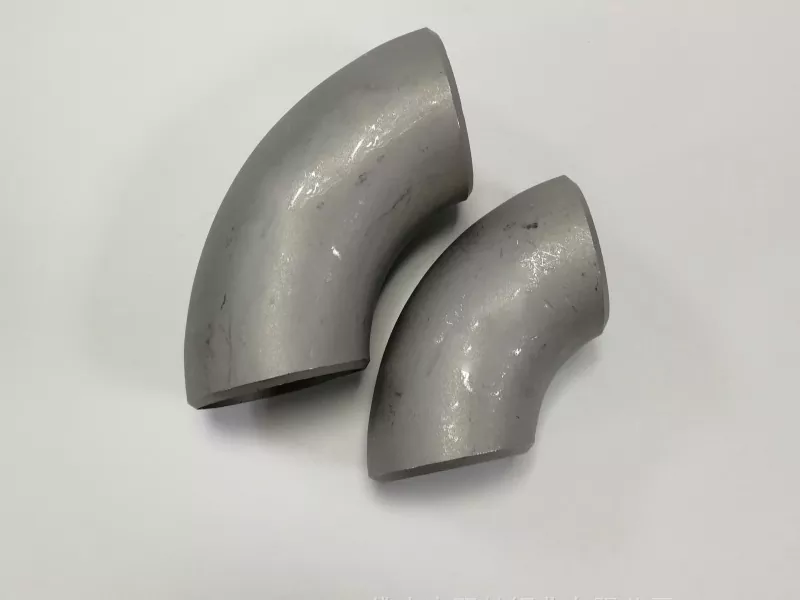

Elbow-45 Deg

The Elbow-45 Deg supplied by Shiwang manufacturer is a commonly used turning accessory in industrial and municipal pipeline systems. Its main function is to precisely change the flow direction by 45 degrees in the pipeline layout, meeting the requirements of various pipeline laying scenarios that need gentle turning.

Compared to large-angle steep bends like 90 degrees, the 45-degree gentle turning design can effectively reduce the impact and vortex of the fluid at the pipeline turning point, fundamentally reducing the pipeline resistance during the fluid transportation process.

This low-resistance characteristic enables the fluid in the pipeline to maintain a smoother transportation state, reducing pressure loss in the pipeline and minimizing the wear of the pipeline inner wall caused by the fluid impact.

Therefore, the 45-degree elbow is widely used in various pipeline scenarios that require a gradual change in the fluid direction. It ensures the flexibility of the pipeline layout while maintaining the efficiency and stability of fluid transportation.

Core Advantages & Key Selling Points

Shiwang Pipe 45° elbows feature precise forming, uniform wall thickness and smooth internal surfaces. Compared with segmented bends, our elbows provide better flow efficiency and longer service life under pressure.

Technical Specification

Application Areas

Elbow-45 Deg is an extremely versatile basic accessory in industrial pipeline layout. With its precise angle design and stable structural performance, it has become a commonly used component for pipeline construction in the oil and gas industry, meeting the turning requirements for long-distance oil and gas transportation, field station pipeline branching, and other scenarios.

In urban water supply and drainage systems, it is also widely used, mainly for line turning in municipal pipelines and branch connections in residential area pipelines, ensuring smooth transportation of water and drainage fluids, and adapting to the installation and usage standards of urban pipelines.

In the production pipelines of the chemical industry, it is one of the key accessories, capable of adapting to the transportation needs of various chemical media, functioning at the turning points of reactor pipelines and medium transportation pipelines, meeting the strict requirements of chemical pipelines for corrosion resistance and sealing.

In various pipeline systems of power stations, this product is widely used in cooling water pipelines, steam pipelines, and fuel oil transportation pipelines, with its precise angle and stable performance ensuring the efficient and safe operation of the power station pipeline system.

In the general pipeline networks of various industrial production parks, Elbow-45 Deg is a basic accessory for pipeline layout, suitable for turning and branching of workshop process pipelines and park public engineering pipelines, adapting to the general installation standards of industrial pipelines in different industries.

In addition, it can also be flexibly adapted to lightweight and medium-sized pipeline systems in industries such as metallurgy, pharmaceuticals, and food processing, becoming a core turning accessory with high cost-effectiveness and strong adaptability in multi-industry pipeline construction.

Production Details & Quality Control

Each 45° elbow undergoes dimensional inspection, surface examination and pressure testing to ensure compliance with international standards and project requirements.

Why Choose Shiwang Pipe

As an experienced 45 degree elbow factory, Shiwang Pipe supports OEM customization, bulk orders and fast delivery. Our elbows are exported to North America, the Middle East, Southeast Asia and Central Asia.
